Technical Information

How Chassis Bracing Works.

Understanding chassis flex and how Ultra Racing's engineering approach eliminates it — helping your car handle better, feel more connected, and perform consistently.

The Problem

What Is Chassis Flex?

Every car body flexes during cornering, braking, and acceleration. The chassis — the structural frame of the vehicle — twists and bends under load. This is normal, but even small amounts of flex have measurable effects on handling.

When the chassis flexes, the suspension geometry changes unpredictably. Toe angles shift, camber moves, and the suspension can't do its job properly. The result: vague steering, inconsistent grip, and a car that doesn't respond the way you expect.

Modern unibody vehicles are designed with controlled flex built in for ride comfort and crash energy absorption. Performance driving demands something different — a stiffer, more predictable platform.

Vague Steering Feel

Flex isolates driver feedback — the car feels disconnected and numb

Inconsistent Grip

Shifting suspension geometry causes unpredictable traction at the limit

Suspension Geometry Shift

Toe and camber change under load — the car doesn't stay tuned

The Solution

Ultra Racing Engineering

One-Piece Construction

Ultra Racing pioneered the one-piece design — brackets and bar formed as a single unit. No welded joints to flex. The structure is as rigid as physically possible, transferring chassis loads directly without any energy loss at connection points.

Multi-Point Design

Ultra Racing was the first Malaysian manufacturer to introduce multi-point bars. By spreading load across multiple anchor points simultaneously, stress is distributed across the chassis rather than concentrated at two points — delivering dramatically better rigidity gains.

Vehicle-Specific Design

Every bar is individually engineered for its target vehicle. Shape, wall thickness, alloy grade, and mounting geometry are optimized for each application — not a universal bar bent to fit. The result is a product that installs correctly and performs as intended.

High-Grade Alloy Steel

Ultra Racing uses high-grade steel alloy throughout — selected for optimal strength-to-weight ratio. Bars are finished with corrosion-resistant coating for long service life even in harsh environments.

ISO 9001 Certified

Ultra Racing manufacturing operates under ISO 9001 quality management certification — ensuring consistent production standards, material traceability, and process control across every product in the range.

Bolt-On Installation

All Ultra Racing products are designed as bolt-on fitments using existing factory mounting points — no drilling, cutting, or welding required. Installation is reversible and does not affect the vehicle's original structure or safety systems.

Product Types

What Each Bar Does

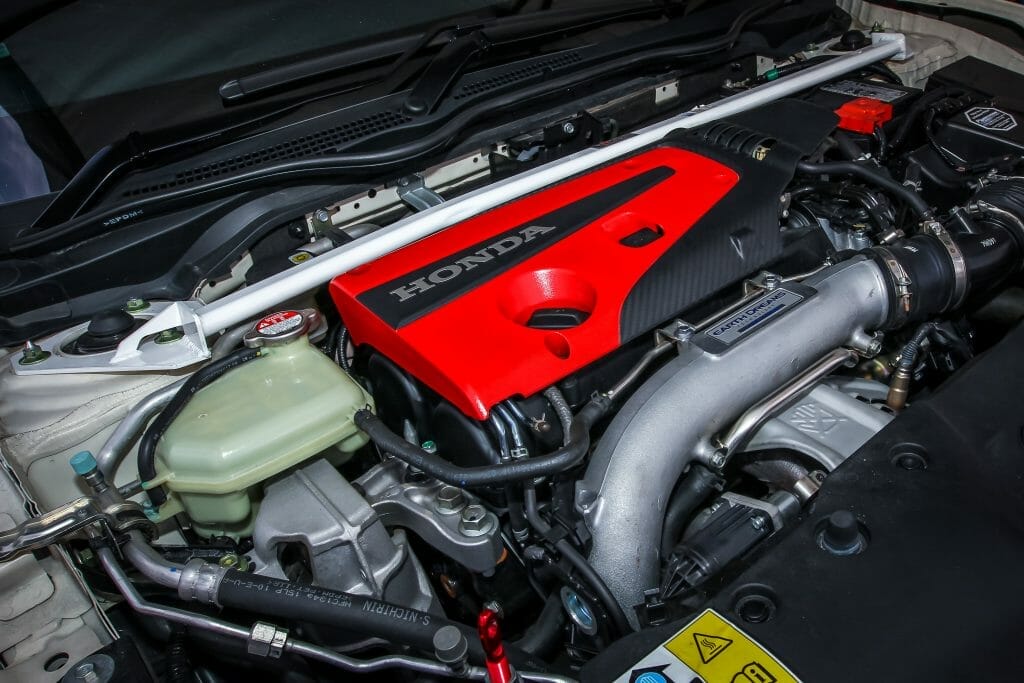

Front Strut Bar

Connects the front strut towers across the engine bay. Reduces front-end flex during cornering — the most common and impactful single upgrade for most vehicles.

Rear Strut Bar

Ties the rear suspension towers together. Particularly effective on hatchbacks and vehicles with open rear trunk areas where the chassis is inherently less rigid.

Front Lower Arm Bar

Braces the front subframe or lower control arm mounting points. Works with a front strut bar to fully triangulate the front suspension — maximum front-end rigidity.

Side Floor Bar

Runs along the underside of the floor pan between front and rear suspension mounting points. Significantly reduces torsional flex — the twisting motion felt during cornering.

Anti-Roll Bar

Controls body roll through corners by linking left and right suspension. Stiffer anti-roll bars reduce lean while maintaining compliance over bumps — tunable handling characteristic.

Questions about your build?

Our team has 15+ years of Ultra Racing experience. Call or email for fitment advice specific to your vehicle.
